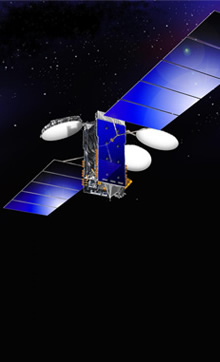

JCSAT-3A

Orbital Position 128°E
Launch Date (Japan Time) August 12, 2006
Launch Vehicle Ariane 5
Satellite Bus Lockeed A2100AX
Frequency Band Ku-Band C-band
HPA-Output Ku: 127W C: 48W
Satellite Type and Size Body Stabilized South-North: 26.9m East-West: 8.6m
Satellite Polarization Skew/Tilt Angle Ku: 0deg
C: 22deg

Coverage Area

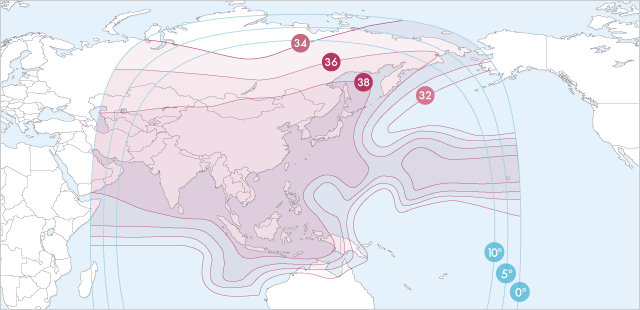

C-band EIRP

38dBW 36dBW 34dBW 32dBW

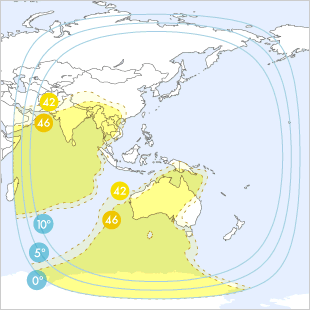

Ku-band Asia EIRP (Pointing Examples)

46dBW 42dBW

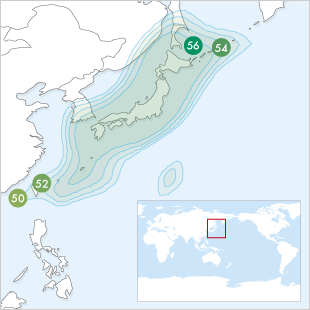

Ku-band EIRP (Japan beam)

56dBW 54dBW 52dBW 50dBW
