Services for overseas broadcasting stations
A GLOBAL GATEWAY WITH PRODUCTION FACILITIES IN JAPAN
SKY Perfect JSAT is the largest satellite operator in Asia and the leading satellite pay TV provider in Japan. Our business includes leasing satellite capacity and the provision of maritime and aeronautical communications. We also provide a range of occasional use services and facilities available to international broadcast and corporate clients.
Our experience in content creation and delivery, combined with our extensive facilities and network infrastructure, allows us to provide transmission and production solutions both within Japan and throughout Asia. For live sports, live music, corporate and medical events we are uniquely positioned to support international clients with broadcast projects in Asia.

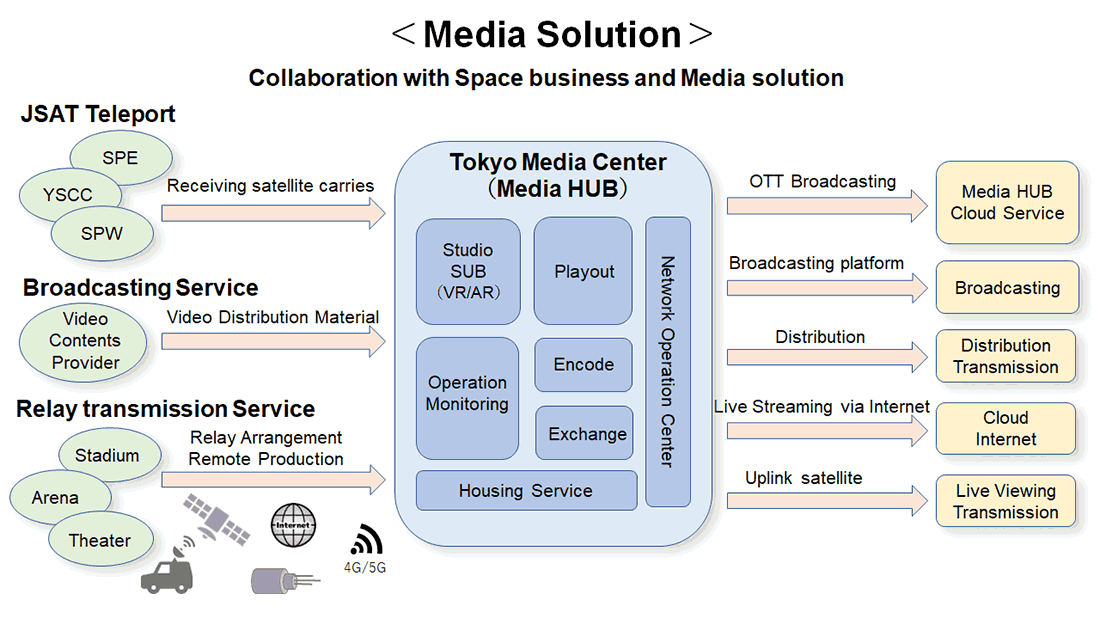

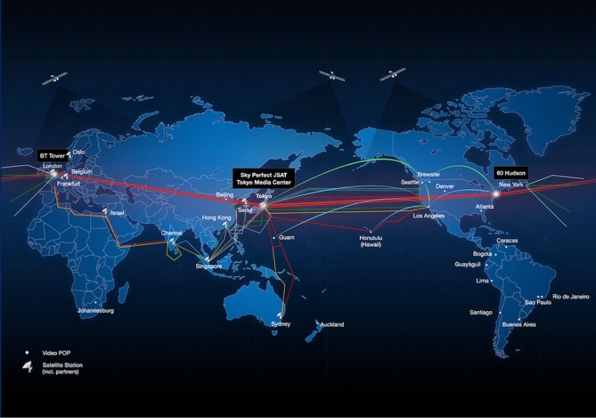

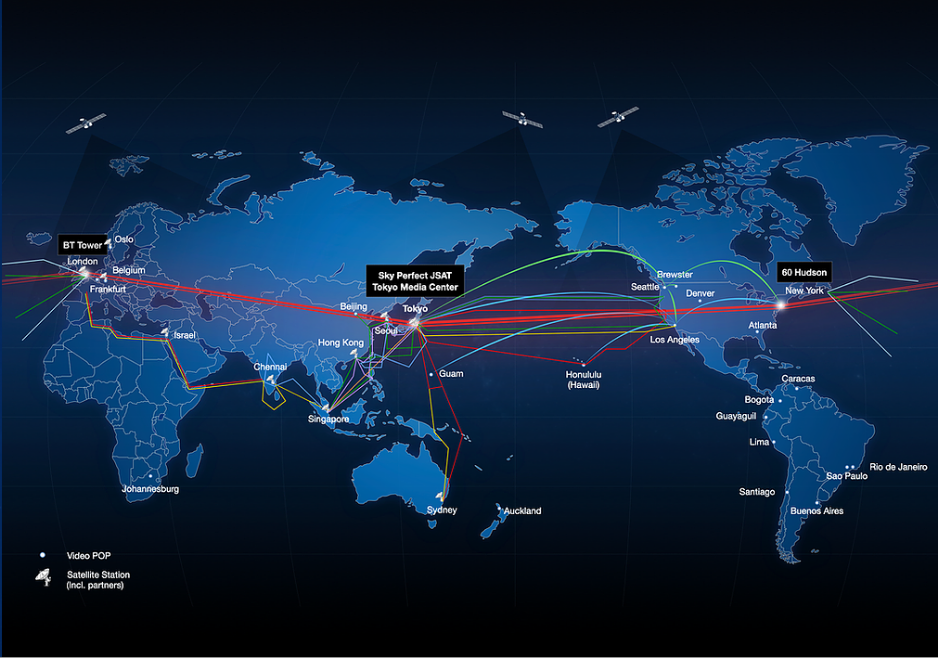

Our teleports located in eastern and western Japan, offer a total of 16 available 4.5 M TVRO antennas with 1 motion antenna at each facility. Both teleports have a fibre connection to our Tokyo Media Centre that in turn is connected to all Japan’s major fibre carriers. We are therefore able to provide TVRO from any uplink to an Asian satellite allowing content to be turned onto our fibre network and delivered to the US, Europe or other parts of the world.
Within Japan, we are also able to provide C Band Uplinks from our fixed earth stations and KU-Band uplinks from SNGs.
At the centre of our network is our Tokyo Media Centre. In addition to connectivity, services that TMC is able to provide, include ingest, archiving, graphics, clipping, provision of highlight packages, streaming and transfer onto OTT or VOD platforms. TMC is also able to offer broadcast studios, edit suites and off tube commentary facilities.
We are also able to provide a 4 K OB van with multi-format adaptability with an experienced technical crew.
For service requests or enquiries please contact us.
SKY Perfect JSAT provides a robust satellite and fibre network, offering a range of services from satellite leasing to occasional use transmission solutions to both domestic and international clients.
From tier 1 sports events and live music, to corporate or medical conferences, SKY Perfect JSAT connects Japan with the world.
For service requests or information regarding a specific project, please contact us.
TOKYO MEDIA CENTRE OVERVIEW
Since 2008, SKY Perfect JSAT has operated the SKY PerfecTV! Network from their Tokyo Media Center.
With approximately 3 million subscribers, SKY PerfecTV! provides more that 100 HD TV channels and 150 audio channels and is therefore Japan’s largest multi-channel satellite DTH platform.

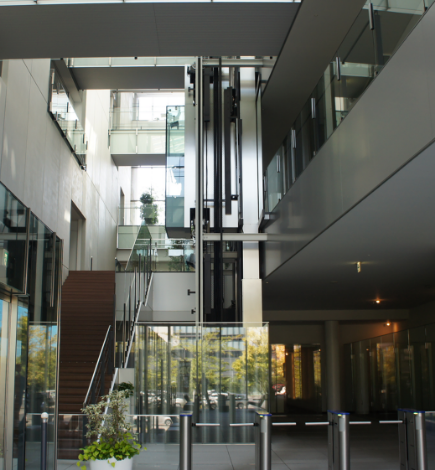

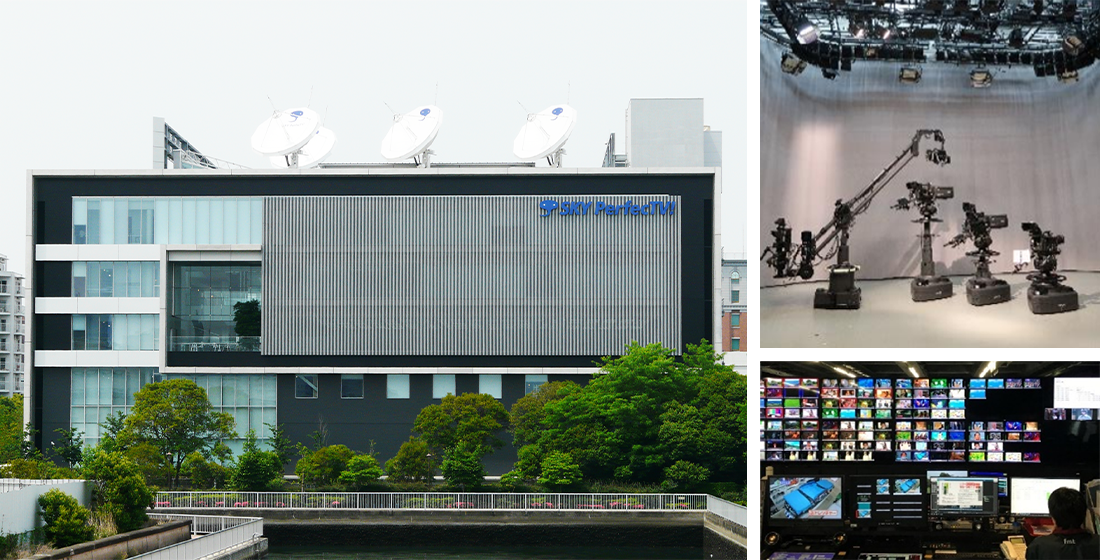

Located close to the centre of Tokyo, TMC houses an extensive network operations center, play-out and in-house production facilities. Combined with satellite, connectivity with all Japan’s main fibre carriers makes the facility a major Asian network hub. As well as connectivity services that TMC can offer include ingest, archiving, graphics, clipping, provision of highlight packages, streaming, transfer or content onto OTT or VOD platforms. Studios, edit suites and commentary facilities are also available to international broadcasters working on projects in Japan.

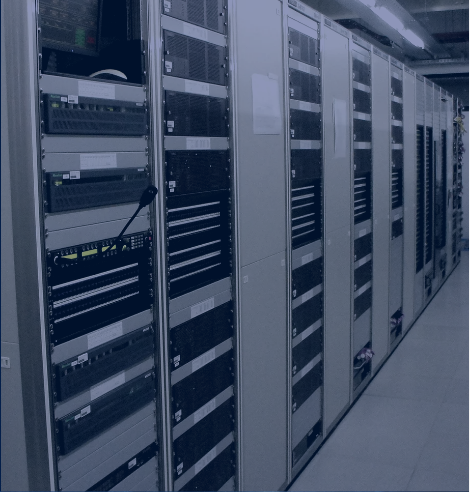

NETWORK OPERATION CENTRE
- 525 X 525 IP matrix router. Supports IP and HD or UHD SDI baseband.
- Multi-format signal format conversion. IP-VR system controlled by an application on a redundant Linux server that can be connected with domestic and international networks.
- FS, signal level, video and audio delay adjustment.
- Satellite C-Band uplink through connectivity to SPE (our teleport located in eastern Japan.).
- Fibre Connectivity with all Japan’s main carriers.
- NTT; KDDI; SoftBank; Nexion
NATURAL DISASTER COUNTERMEASURES

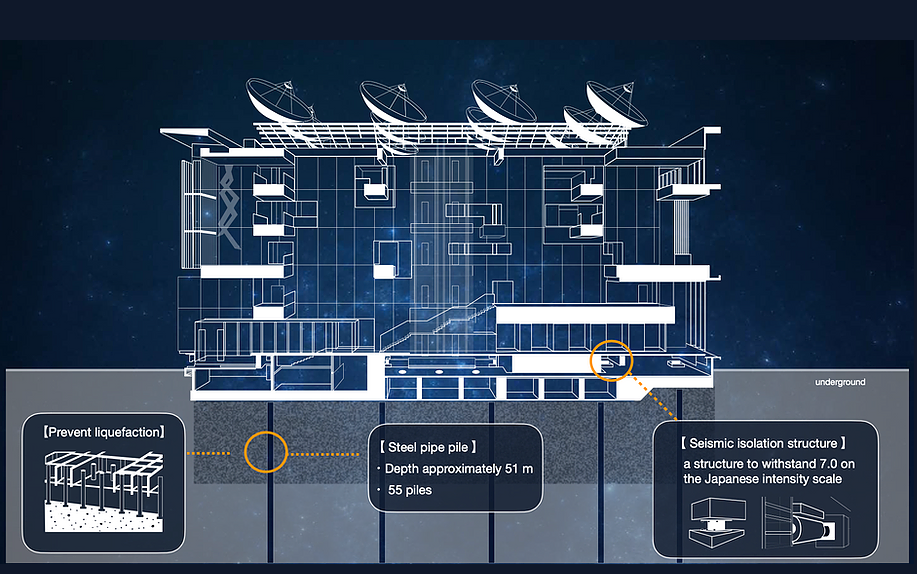

- The building incorporates a seismic isolation structure designed to withstand an earth quake of 7.0 on the Japanese intensity scale.
- The building foundations are constructed of 55 steel pipe piles embedded 51.5 meters below ground level.
- To mitigate potential damage caused by tremors, the steel pipe piles rest on high-suppression oil dampers.
- In conjunction with other counter-measures to prevent liquefaction and flooding, TMC provides a robust structure to ensure the safety of the occupants of the building and the continuation of services even in the event of a severe natural disaster.
POWER OUTAGE COUNTERMEASURES

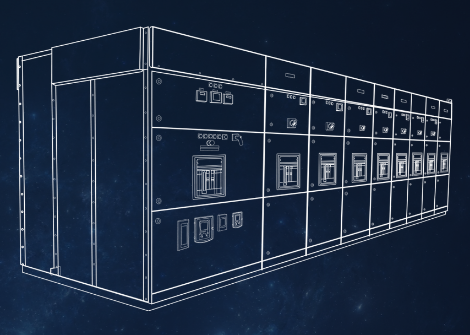

- 22KV Special high pressure spot network power reception system with 3 distribution lines.
- Outage Counter-measures ensure that TMC has more than a 72-hour independent power supply in the event of an emergency.
- 31750 KVA emergency gas turbine power generators.
- 6500 KVA uninterruptible power systems.Use of the main and secondary in-house power source trunk lines.
C BAND / KU BAND UPLINKS

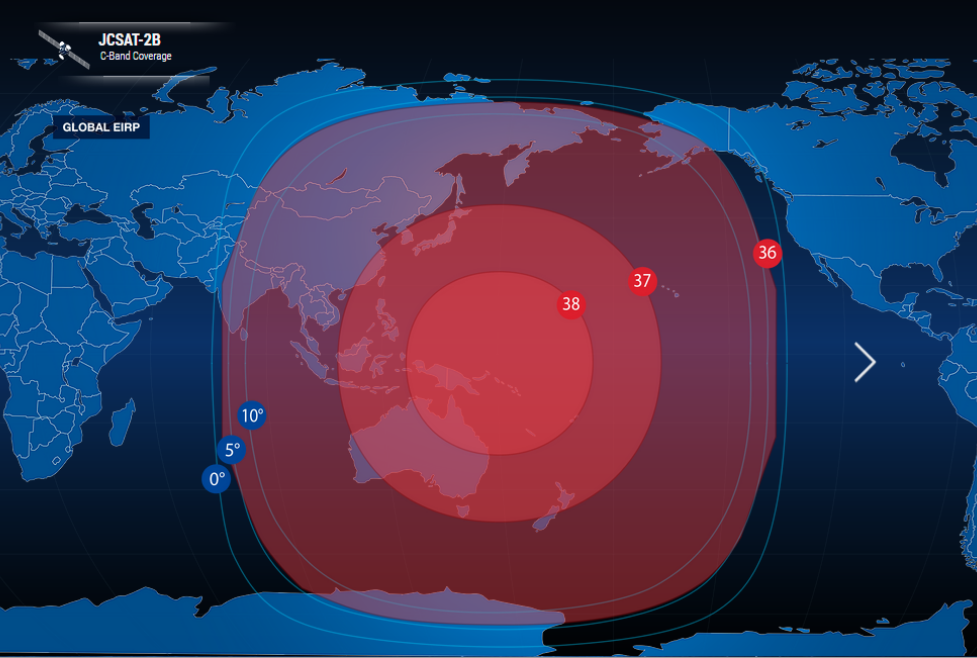

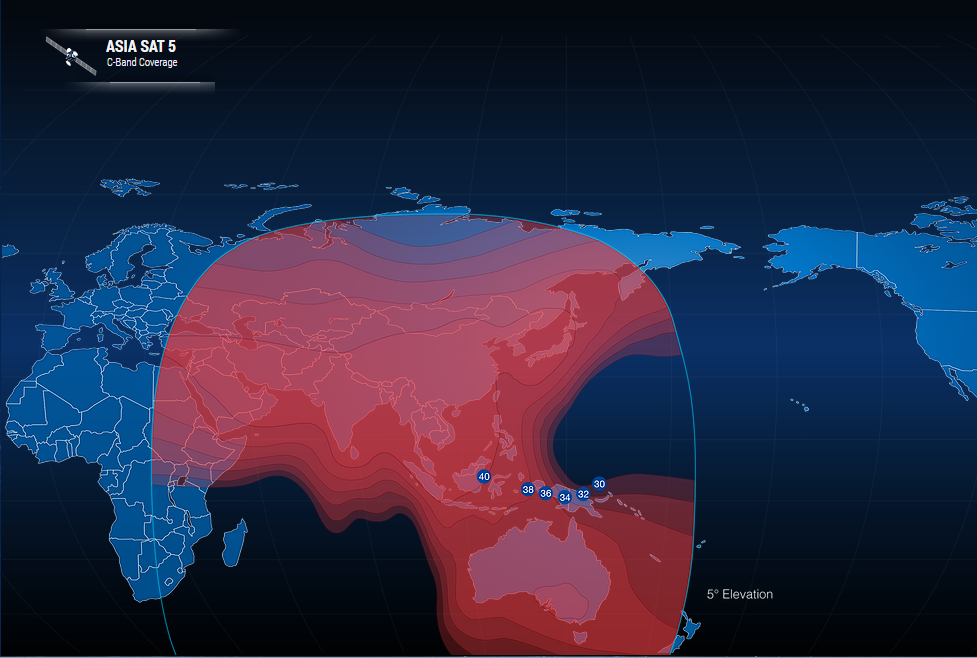

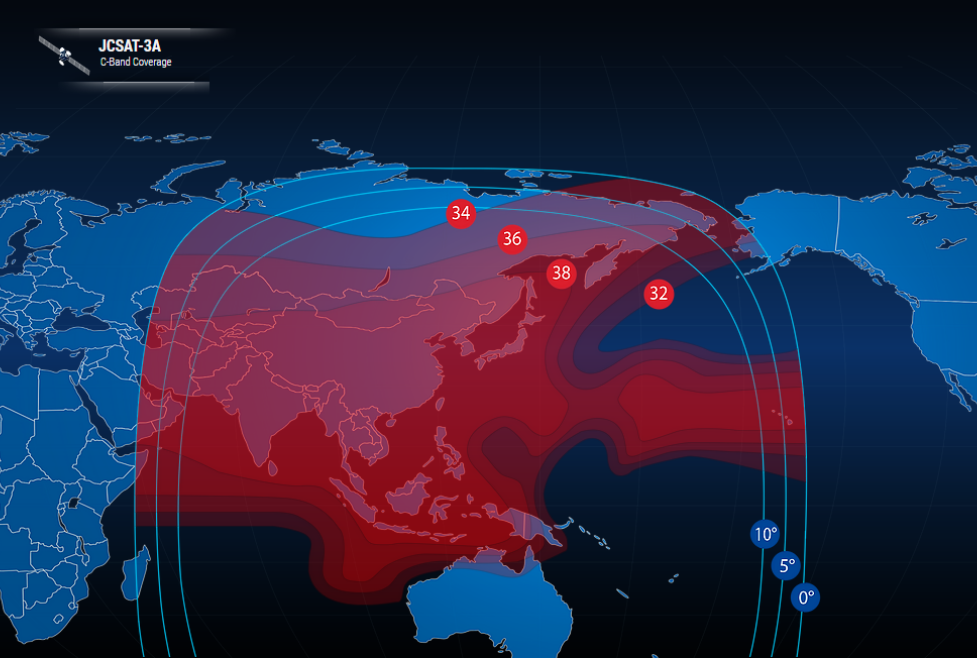

We are able to provide C-band uplinks from our fixed earth station at Ibaraki to the following satellites: Asia Sat 5, JCSAT-3A and JCSAT-2B.
We are also able to supply KU Band uplinks through our partners. Available satellites include IS 19, Asia Sat 5, SES 12, Horizons - 3E and Superbird C-2.

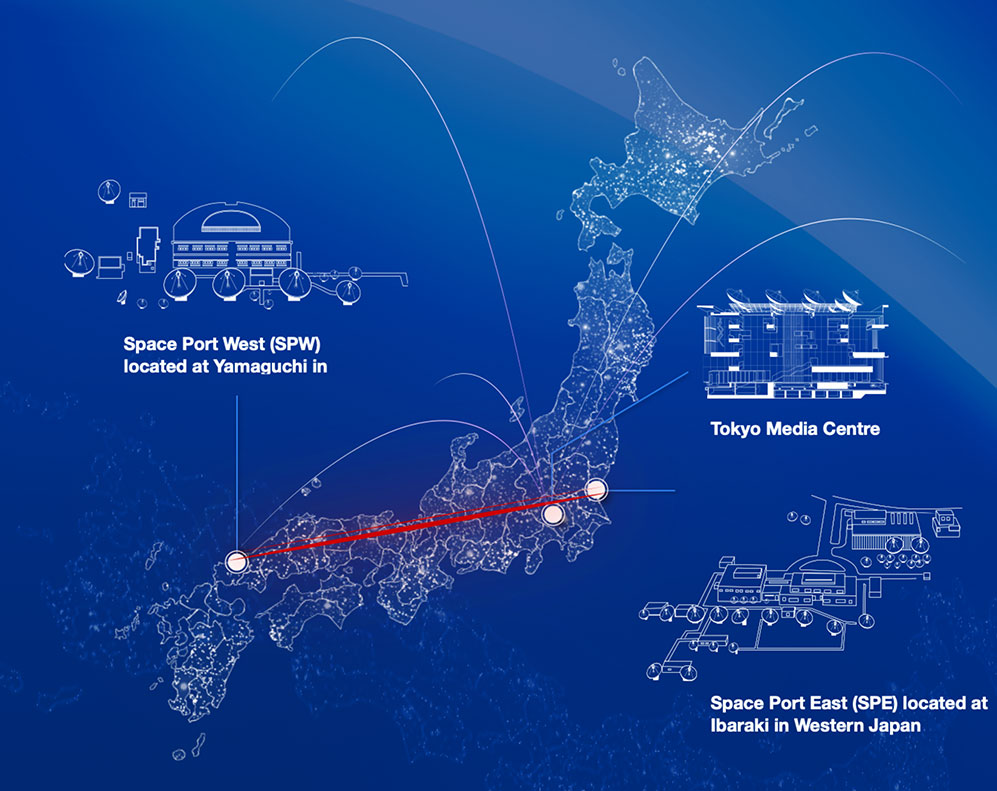

SPW (Space Port West) is located in Yamaguchi. SPE (Space Port East) is located in Ibaraki. These 2 teleports offer a total of 16 available 4.5 M TVRO antennas with 1 motion antenna at each facility. Both teleports have a fibre connection to our Tokyo Media Centre that in turn is connected to all Japan’s major fibre carriers.
We are therefore able to provide TVRO from any uplink to an Asian satellite allowing content to be turned onto our fibre network and delivered to the US, Europe or other parts of the world.
TVRO at Space Port West
|3||125E - 68.5E||450||Motion Antenna|
TVRO at Space Port East
|No.||Orbital Position||Antenna Diameter||Satellite|
|3||166E||370||Intelsat 19 (back up)|
|8||125E||370||Chinasat 6A (back up)|
|11||115.5E||370||Chinasat 6B (back up)|
|17||87.5E||370||Chinasat 12 (back up)|
|19||177W - 78.5E||450||Motion Antenna|
|20||154E||380||JCSAT 2B (Uplink)|
KU BAND DSNG

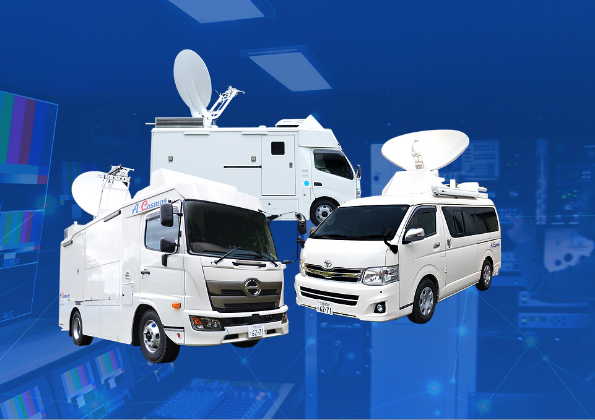

Through long term partners, we are able to deploy SNG & flyaway units to any location in Japan. Satellites that we frequently uplink to for overseas transmissions include IS 19, Asia Sat 5, SES 12, Horizons - 3E and Superbird C-2.
For further information regarding SNGs, please refer to the following link:
OB VAN and TENDER VEHICLE

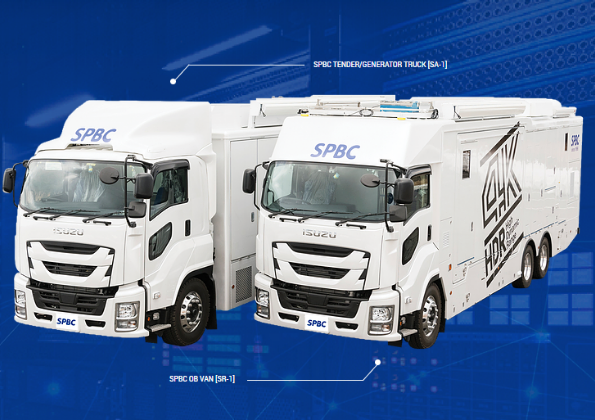

Through our group company SPBC, we are able to provide a 4K HDR OB van with multi-format adaptability. Operating in conjunction with an 80 KVA generator/tender vehicle, our basic 8 camera system is capable of expanding to a 30 camera production requirement.

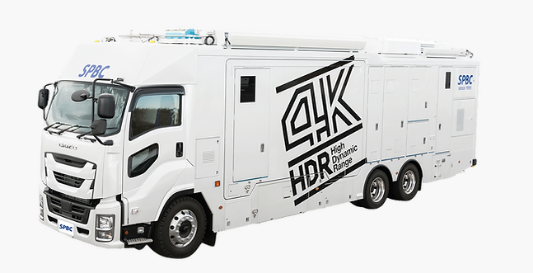

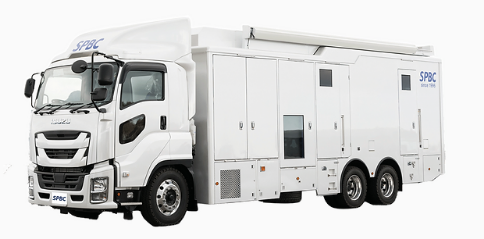

OB VAN [SR-1]
Standardising in-vehicle signals to 4K HDR S-Log3/BT.2020 through multifunctional format convertors, the following conversions are available:
- Resolution conversion between 4K and HD [4K?HD]
- Gamma conversion for HDR broadcast standard
- [SDR?HDR] (S-Log3 ? PQ ? Hybrid Log Gamma)]
- Color gamut conversion [ BT.709?BT.2020]
Onboard QC enables simultaneous quality control of SDR/HDR and HD/4K signals.

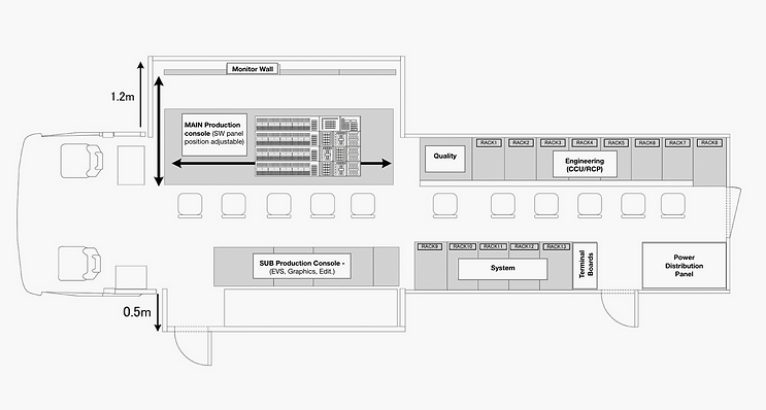

OB VAN [SR-1] SPEC
|Vehicle||Isuzu Motors Limited QPG-CXY77BJ-SX (380 PS)|
|Width||2,495 mm [4,195 mm] Right side expansion 0.5m / Left side expansion 1.2m|
|Weight||Total weight 19.990t Vehicle weight 19.620t|
|Power generator||Power supply from SA-1|
|External power Supply input||Cam lock (100V / 200V), Air conditioning input (100V)|
|Vision Mixer||SONY XVS-8000 4ME 4K: 40 input|
|Vision Mixer Main panel||36Xpt 3ME + AUX BUS|
|Vision Mixer Sub panel||20Xpt 2ME + AUX BUS|
|Video Server||3 x EVS XT-4K (4ch) supporting 4K/XAVC format recording.|
|DSK||4ch (+ external DSK 1 ch)|
|VIDEO Router||FOR-A MFR-8000 / 4K 64in 64out FOR-A MFR-8000 / HD 144in 144out|
|AUDIO Router||FOR-A MFR-8000 112in 112out (mixed with HD router)|
|Camera · CCU||8 x SONY HDC-4300 8 x SONY HDCU-2000 / BPU-4500 Standard configuration 8 units. 12 additional units can be added. (A further 20 units can be installed in a relay car)|
|Lens [4K]||5 x Canon UJ86 × 9.3B ISS 3 x Canon CJ20e × 7.8B 2 x Canon CJ12e × 4.3B|
|Video Server||3 x EVS XT-4K (4ch) Supported for 4K/XAVC format recording|
|Multi format converter||9 x SONY HDRC - 4000 4 x FOR-A FA-505 12 x ASTRODESIGN SB-4024 Using the above equipment, the following signal conversion is possible · Resolution conversion: 4K ⬌ HD · Gamma conversion: SDR ⬌ HDR (S - log 3 · PQ · Hybrid Log Gamma) · Color gamut conversion: BT.709 ⬌ BT.2020|
|Multi Viewer||2 x FOR-A MV-4200|
|Vision Mixer||2 x SONY BVM-X300|
|Front monitor||2 x SONY KJ43X-8300D|
|Intercome system||RIEDEL MFR-128|
|Optical transmission device||2 x Otaritec LWB-64|
TENDER VEHICLE [SA-1]
An onboard 80KVA generator supplies power to the OB van and other external equipment. Various connector options are available to harness venue power.

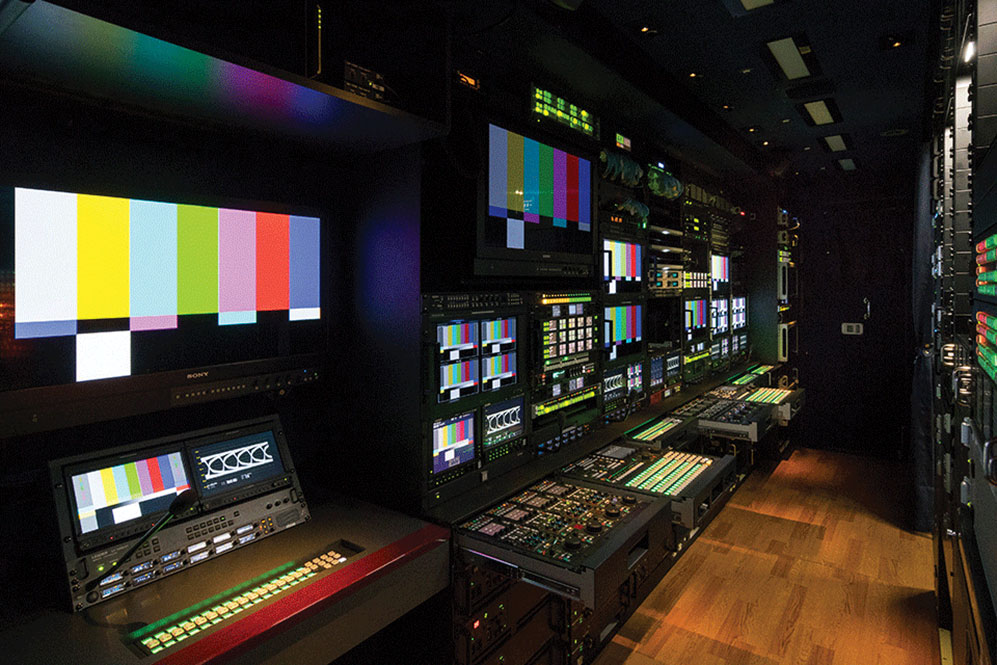

Once equipment is unloaded the storage compartment becomes an additional production area with space to house audio mixers, VTRs, additional EVS or graphics facilities as the specific production requires.
Embedded double air conditioners provide a comfortable working environment under any weather conditions.
TENDER VEHICLE [SA-1] SPEC
|Vehicle||Isuzu Motors Limited QPG-CXY77BJ-SX (380 PS)|
|Full length||10,505 mm|
|Full Width||2,495 mm|
|Total height||3,650 mm|
|Generator||TOMINAGA & CO.,Ltd HIT-80KI2 200V 80KVA|
|External power supply output Type of connector||Camlock Connectors 200V 50KVA (For OB Van) Camlock Connectors 100V 30KVA, 30KVA, 20KVA, 10KVA (Each one line) C type Two convertible|
|External Power supply input||Camlock Connectors 200V or 100V|
|Length (interior)||4,580 mm|
|Width (interior)||2,290 mm|
|Height (interior)||2,410 mm|
|Maximum loading Capacity||5,200 kg|

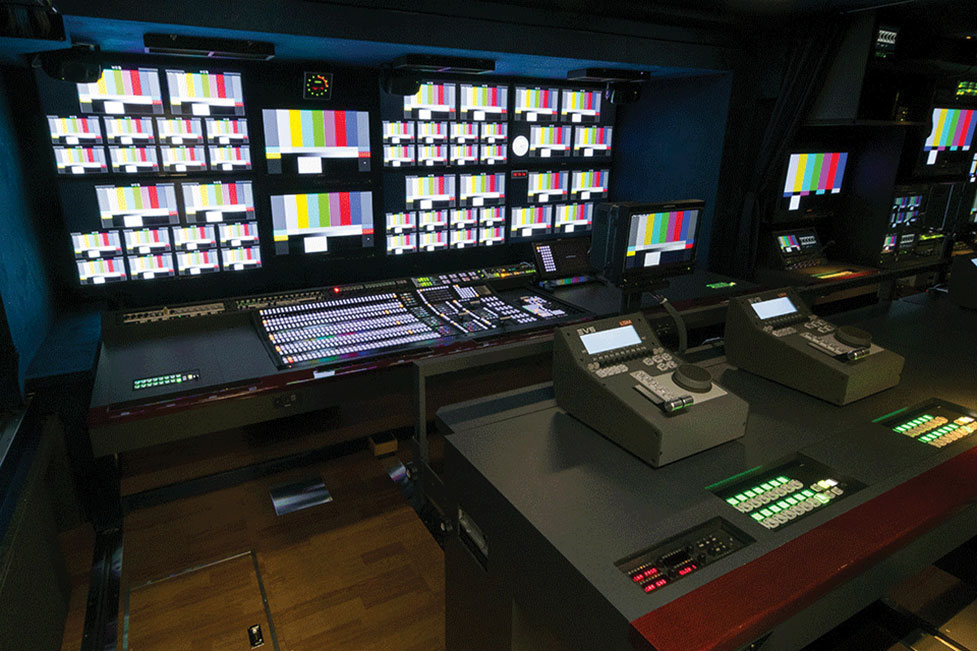

Bilateral expansion creates a spacious production area. A moveable switcher table enables further production flexibility.
The monitor wall is fully configurable.

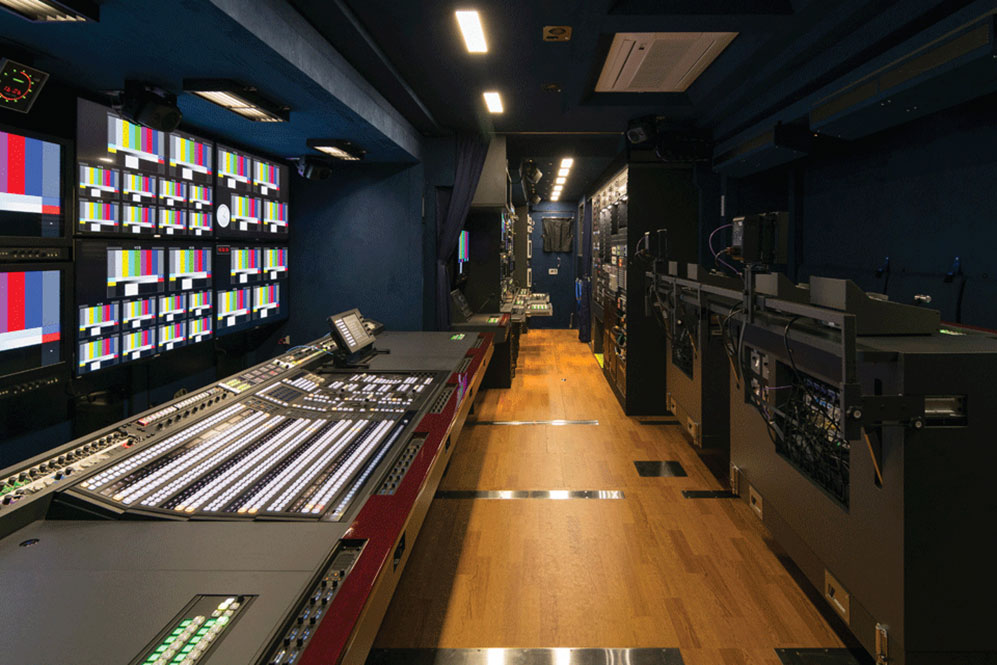

VISION CONTROL / ENGINEERING
There are 3 broadcast studios within the Sky Perfect JSAT Tokyo Media Centre. ( 1 4K and 2 HD studios.)
Each studio is equipped with a sub-control room.
Each control room is connected with both the TMC network operations center and play-out facilities.
Through TMC’s fibre, satellite and OTT connectivity, broadcasters using these facilities, will be able to deliver live programming to any destination in the world.

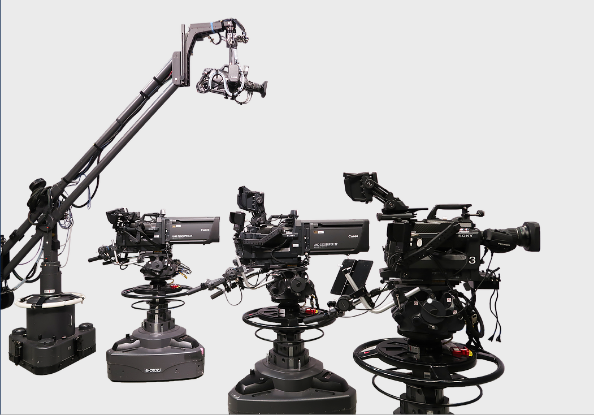

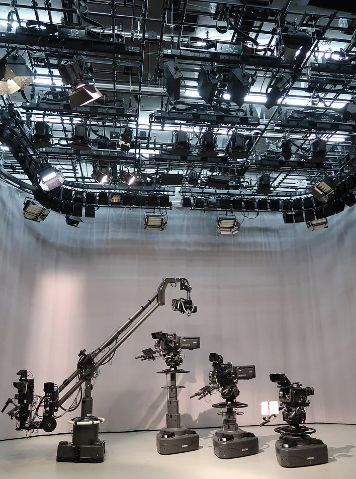

CAMERAS, LENSES and CRANES
Sony HDC-4300 x 4
Sony PMW-F-55 x 2
Sony HDC 2500R x 4
Sony HDC 1400 x 4
Sony HDC 1500 x 2
Shotoku TK-57VR2 ShotokuTK-59 VR
Canon UJ27 x 6.5 BISS x 2
Fujinon UA 18 x 5.5 BEZD x 2
Fujinon UA13 x 4.5 BEZD x1
Canon HJ11 x 4.7 x 1
Canon XJ23 x 7B x 2
Canon HJ22x 7.6 x 3
Canon HJ14e x 4.3

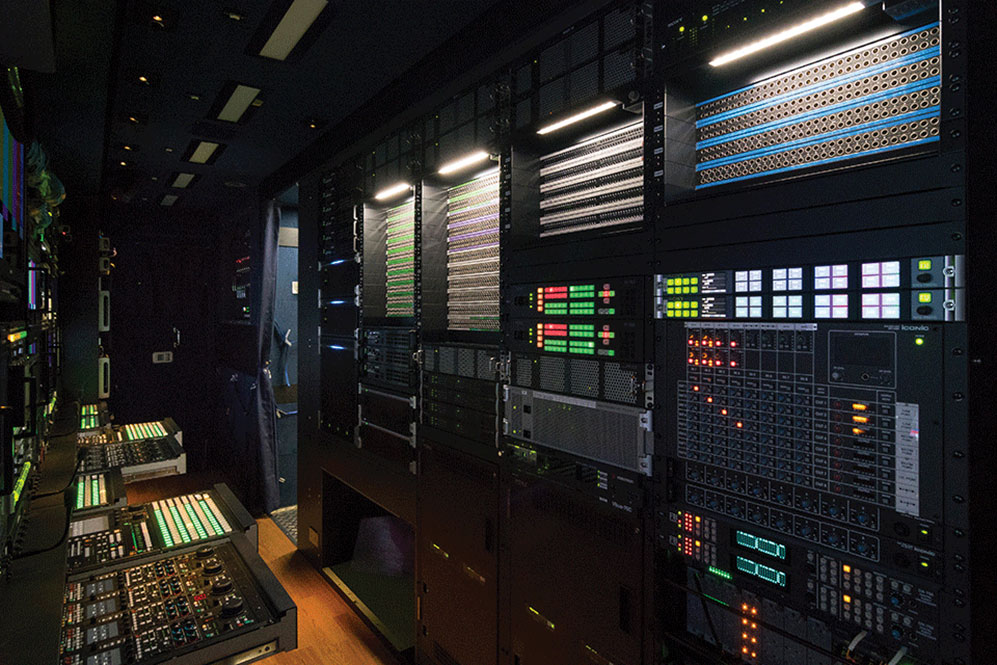

SUB-CONTROL ROOM FACILITIES
- CG - VIZ RT ; GRID - Zero HDR; Neon Sports Coder; Vega
- VTR -HDW- D1800; PDW-HD 1550; PDW-HD 1500 FS Converters - FA - 505 ; HDRC - 4000; SB 4024
- Virtual systems - VIZ RT x 4; Ultimat x 4
- Commentary Booths EVS XT 3 x 4
- EVS XT 4K x 2

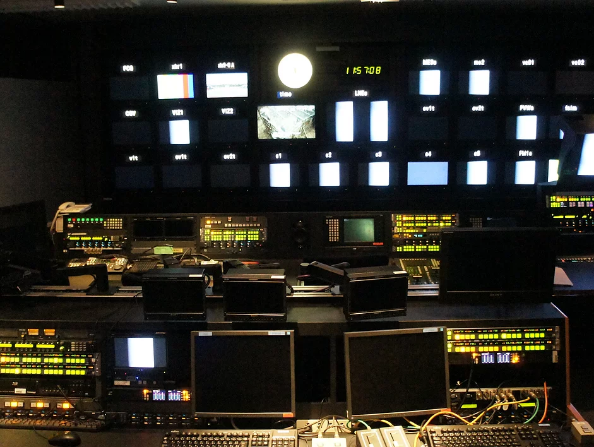

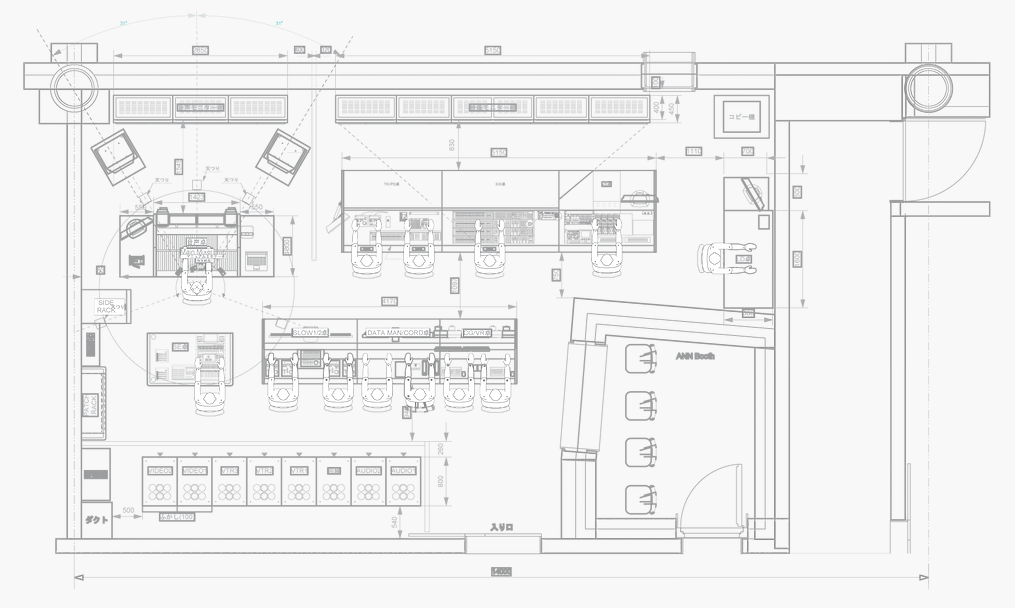

SUB-CONTROL ROOM LAYOUT

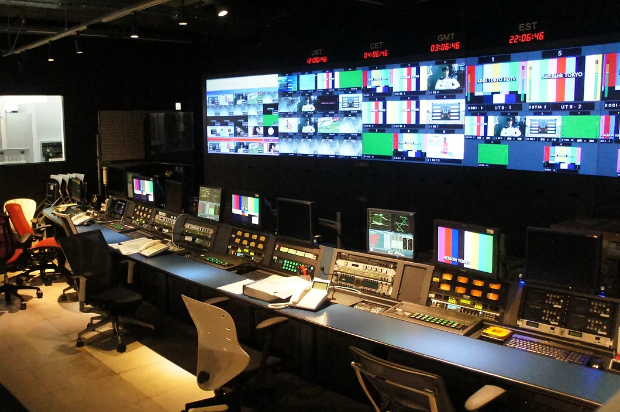

Studio 1 4K
Each studio is operated from ergonomic control rooms.

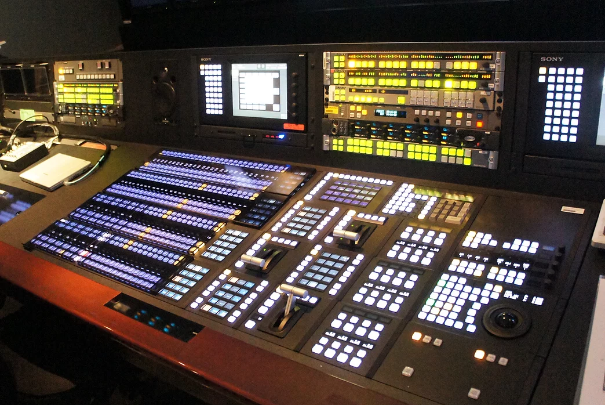

VISON and AUDIO MIXERS
Vision Mixers include:
Sony XVS - 8000 x 1
Sony MVS - 8000A (DVE 2ch) x 1
Sony MVS - 8000G (DVE 2ch) x 1
EMG Mixers include:
Yamaha DM 1000 x 3
Audio Mixers include:
Tamura AMQ - 1100 x 2
PLAY OUT FACILITIES
- Live play out.
- Server play out - DTH / OTT
- Live streaming
- Audio Live Streaming
- Comprehensive Content
- Management System.
